How to Assemble a Valley Dynamo Pool Table: Step-by-Step Guide
Congratulations! Your new Valley pool table has arrived. This guide walks you through every stage of the assembly process, from cutting the banding to dialing in a perfectly level playing surface.
Set aside about an hour, grab a helper, and you'll be racking your first game before you know it.
⚠ Read this first
- This table is heavy - 600 to 900 pounds depending on addons. You'll need at least two people for the entire process — no exceptions.
- Assemble in or near the table's final location. Moving a finished table is a job you'd rather avoid.
- Never let the box stand on its own. Keep a hand on it until it's fully supported.
- Not comfortable with heavy lifting? Pool Table universe recommends professional installation, there's no shame in calling a pro.
⚒ What you'll need
- Two or more people (required)
- A long level — the longer, the better (more on that in Step 11)
- A large adjustable wrench or tongue-and-groove pliers, such as Channellock
- A Phillips screwdriver
- A piece of carpet or flattened cardboard to protect your floor and the table's finish
- The included hardware pack, four legs, and access key (stored inside the table)
Part 1 · Unboxing
1Stand the box up and cut the banding
Stand the crate on one of its long sides and remove the banding. Leave the support or A-frame in place while you work.
⚠ Important: Never let the box stand on its own — always keep a hand on it.
2Lean the box back and lift off the top
With a helper steadying the table, carefully lean the box back slightly and pull the top of the box straight up and off.
3Remove the top, end protectors, and slate pad
Take out the box top, the foam end protectors, and the slate protective pad. You'll start to see the green playing surface underneath.
4Lay down floor protection
Place a piece of carpet or flattened cardboard on the floor in front of the table. This protects both your flooring and the table's finish during the next few steps.

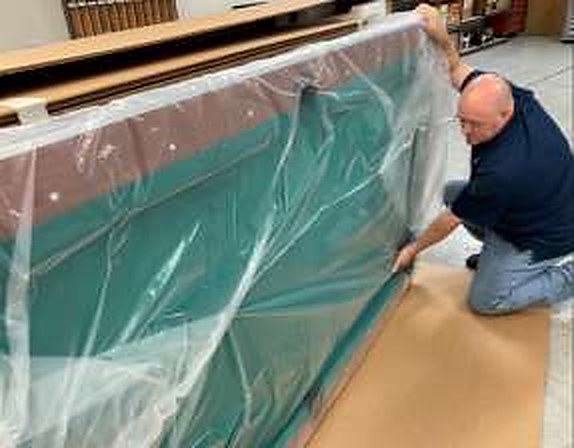

5Slide the table out
With one person supporting the table, the second person grasps it by the bottom corner pockets and pulls it straight out onto the protected floor.
6Remove the box bottom
Lean the table slightly forward and slide out the box bottom.
⚠ Important: Make sure the bottom packing wedge stays in place — it keeps the table stable while you attach the legs.
Part 2 · Building & Leveling
7Open the access door and get your hardware
Remove the Phillips screw to free the access-door key, unlock the door, and take out the hardware pack and all four legs stored inside.
8Attach the legs
Bolt each leg to the bottom of the table using its four bolts. Attach the bottom two legs first, then the top two. Snug every bolt down firmly.
9Set the levelers and replace the access door
Screw each leg leveler all the way in — you'll back them out later to fine-tune. Then replace the bottom access door.
10Tilt the table upright
With at least two people, carefully tilt the table down onto its legs. Go slow and keep it controlled.
11Level the playing surface
This is the step that makes or breaks how your table plays. Set your level on the slate in several spots and rotate the leg levelers up or down — using a large adjustable wrench or tongue-and-groove pliers — until the surface is flat in every direction.
Pro tips for a perfect level
- It's far easier to turn a leveler when a helper lifts that corner of the table slightly during adjustment.
- Use the longest level you can find — larger levels reveal small slopes that short ones miss.
- Check lengthwise, widthwise, and diagonally, then re-check after a day or two of play.
That's it — your Valley table is ready. Rack 'em up and enjoy. A properly leveled table rewards you with true, predictable rolls for years, so it's worth taking your time on that final step.
Frequently asked questions
How many people do I need to assemble a Valley pool table?
At least two, for the entire process. The slate playing surface makes the table very heavy, and several steps require one person to steady the table while the other works.
How long does assembly take?
Most people finish the build in about 2 houra. Leveling can add anywhere from a few minutes to half an hour depending on your floor.
Do I need a professional installer?
Not necessarily — this model is designed for DIY setup with basic tools. That said, Valley recommends professional installation if you're not comfortable with heavy lifting.
What tools do I need?
A long level and a large adjustable wrench or tongue-and-groove pliers are the essentials. A Phillips screwdriver helps for the access door, and a piece of carpet or cardboard protects your floor.
Why does leveling matter so much?
An unlevel slate causes balls to drift and roll off-line, which ruins play. Spending extra time on Step 11 is the single best thing you can do for your table.
